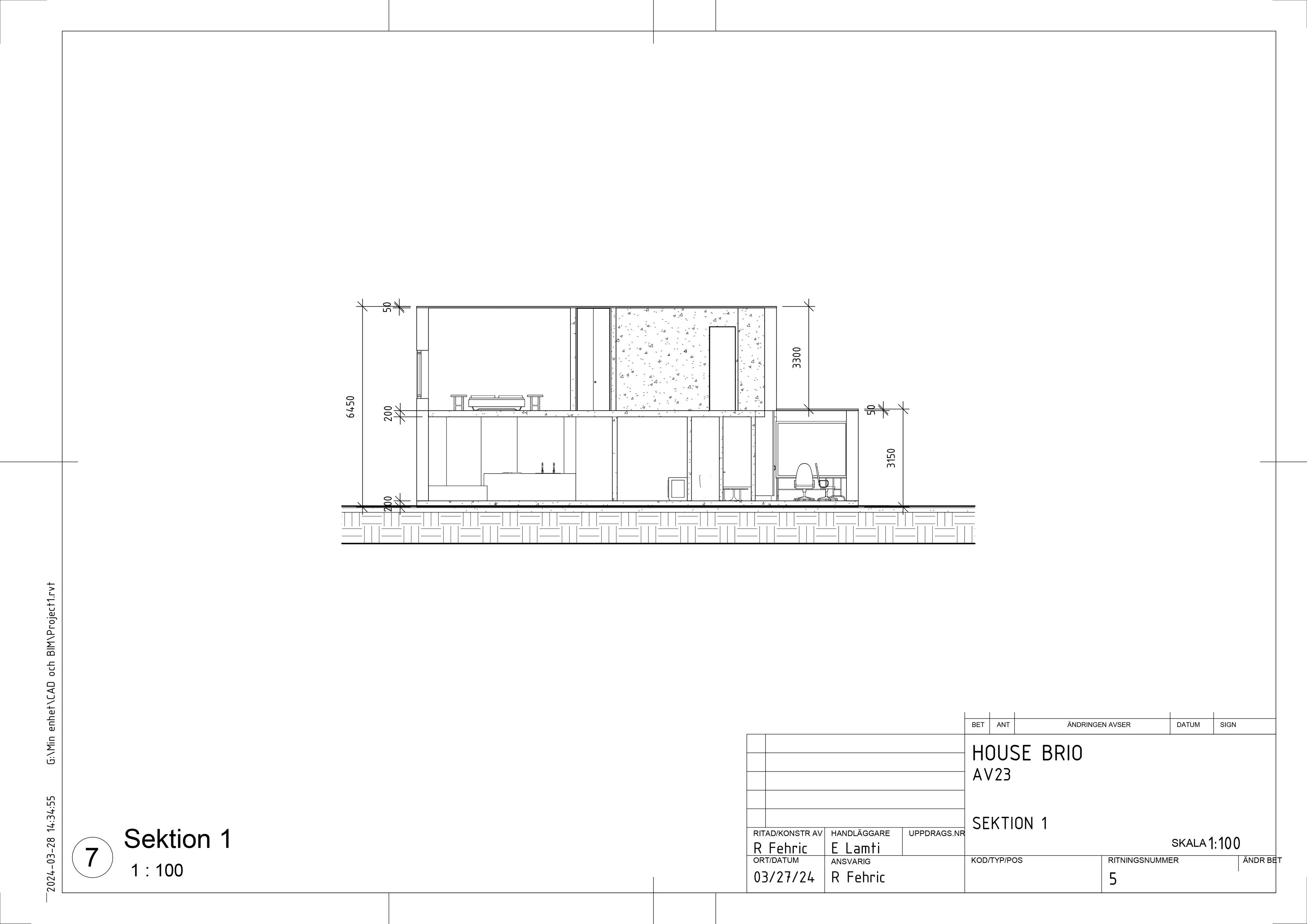

SECTION 1
SECTION 2
07

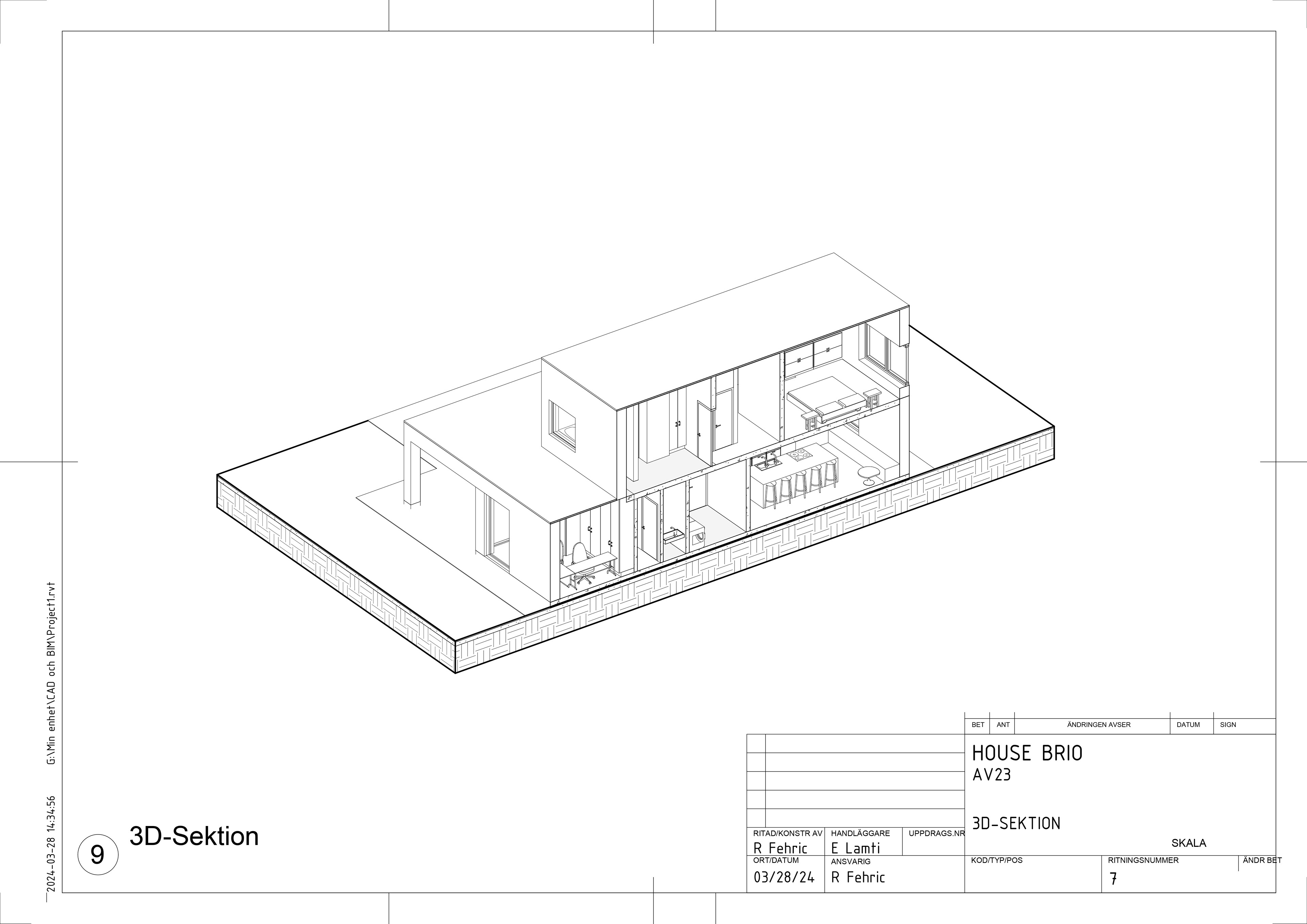

3D-SECTION
The revit project
COMING SOON The assignment was to make your own AutoCAD drawings based on images of both facades and floorplans, that we later on used to model the villa with, in Revit. When the Revit-model of the villa was ready, I linked it into 3Ds Max and made a surrounding fitting for the villa and here is the final result. This was my first time trying out and learning new programs such as AutoCAD and Revit. The drawings below were made in Revit after the villa was built. My choice of villa: “House BRIO” by STAM Architecten. Made in 3Ds Max with Corona render, post production in Photoshop.
